Communities in Networks

Networks are “groupy”

• Network formation processes lead to “groupy” networks

• Foci (Scott Feld)
• Triadic closure
• Homophily

We may want to identify groups

• Understanding where information is likely to flow / be held in common
• Social media marketers identifying “interest groups”
• Researchers understanding a scientific field
• Understanding relationships between groups

Early approaches to identify groups

• Components
  • Everyone connected in any way
  • Usually not useful - (nearly) everyone is connected
• Cliques
  • Everyone is connected to everyone else in group
  • Expanded to n-cliques (everyone in group is at a distance of n or less from everyone else)
  • Long, stringy groupings

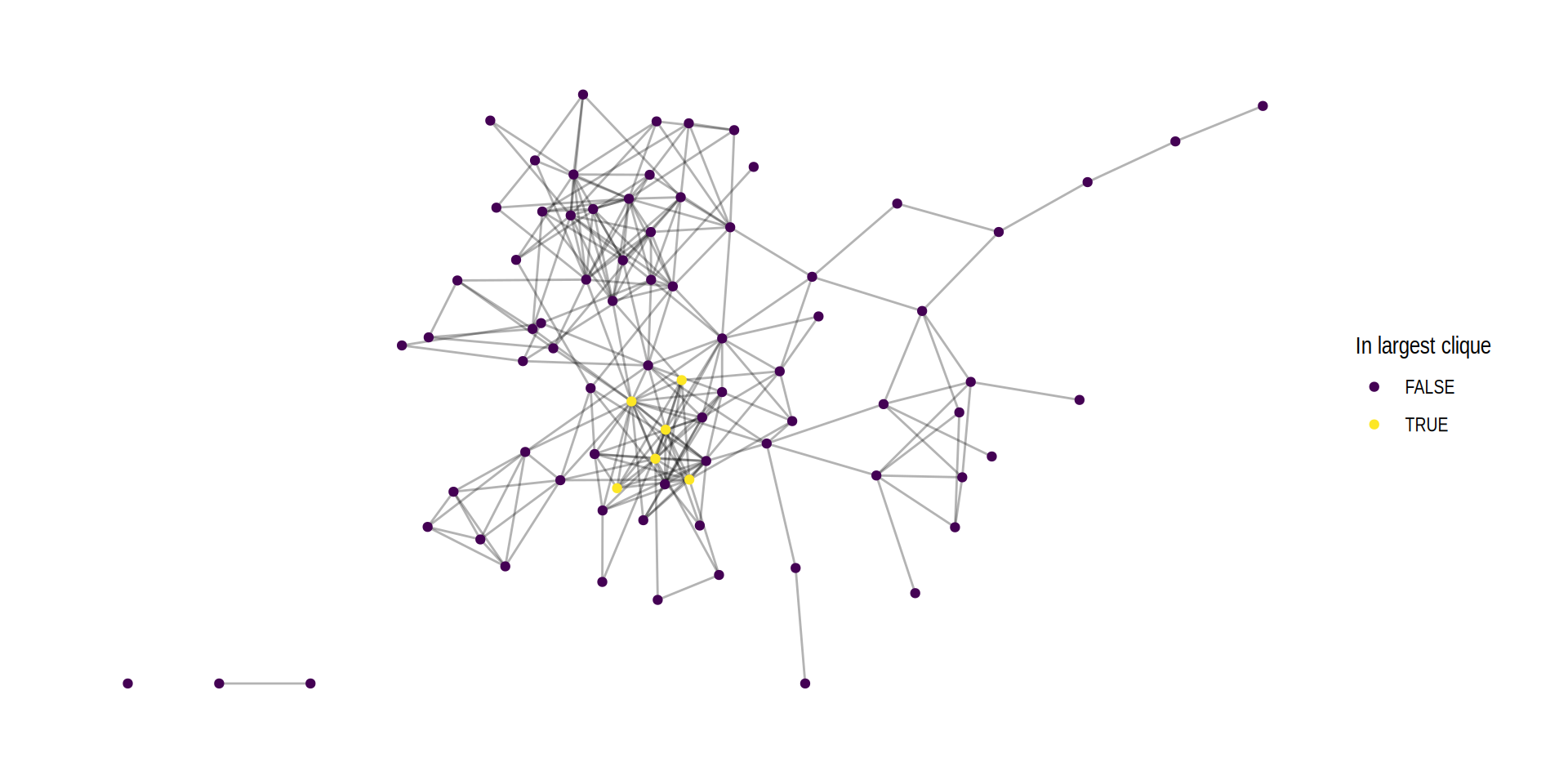

Clique Example

Early approaches (continued)

• K-plexes
  • All members of group are connected to all but k other members

Modern approaches - community detection

• Modularity
  • Maximize edges within communities and minimize edges between them
• Agglomeration
  • Add nodes/groups that are closely connected
• Reduction
  • Remove edges with high betweenness
• Random walk
  • “Walk” through the network many times
• Often quite similar

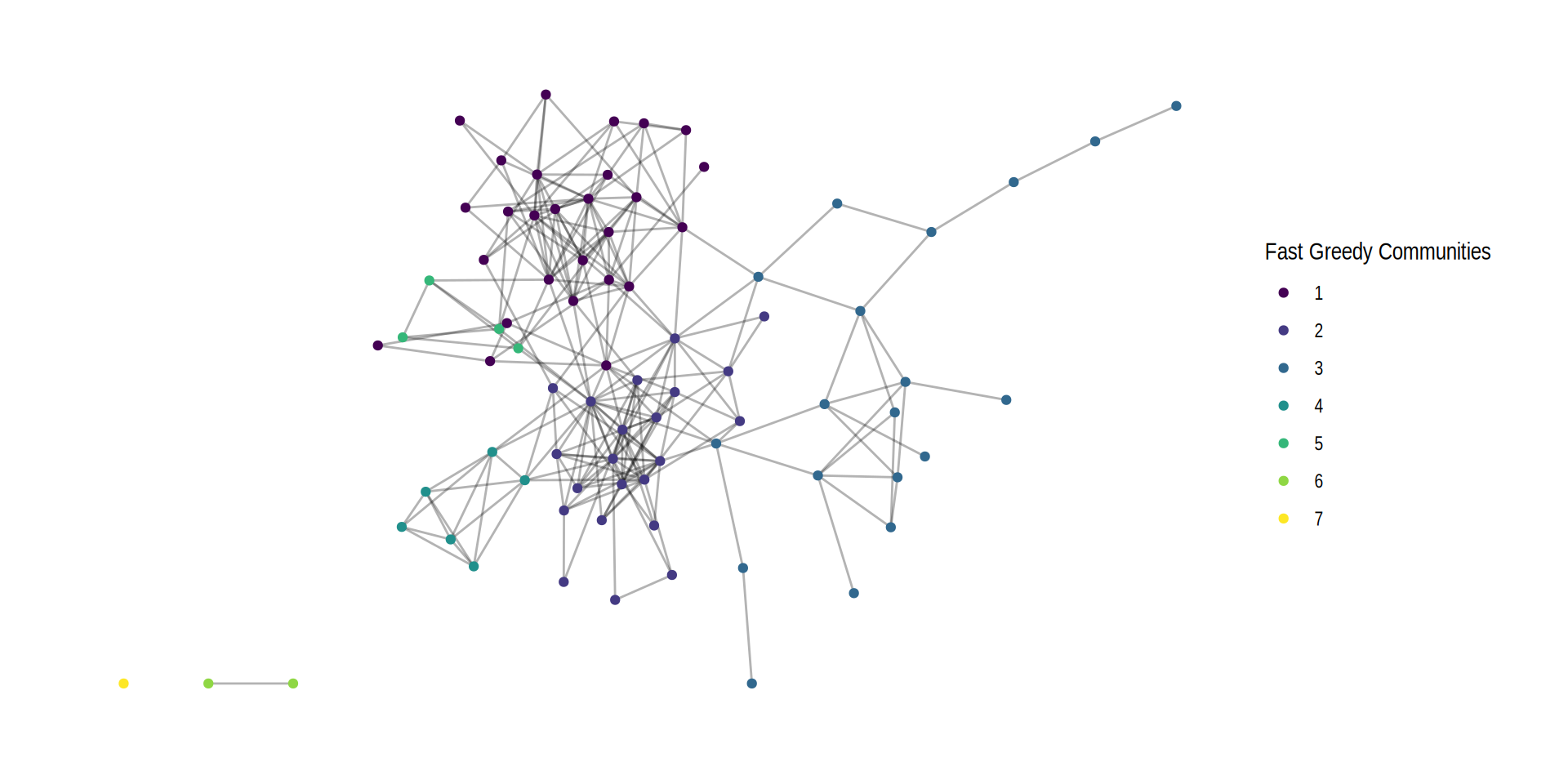

Fast Greedy Example

Core and Periphery

Many groups have a core and a periphery

• New people start on the periphery (Legitimate Peripheral Participation)
• People leaving move to the periphery
• Different levels of dedication / resources
• Evolutionary perspective
  • In order for groups to survive, there has to be a core

Implications

• Those in core more likely to have knowledge, experience, and to stick around
• Identify the most dedicated group
• Identify those in danger of leaving / needing help

Ways of measuring

• Block modeling

Ways of measuring

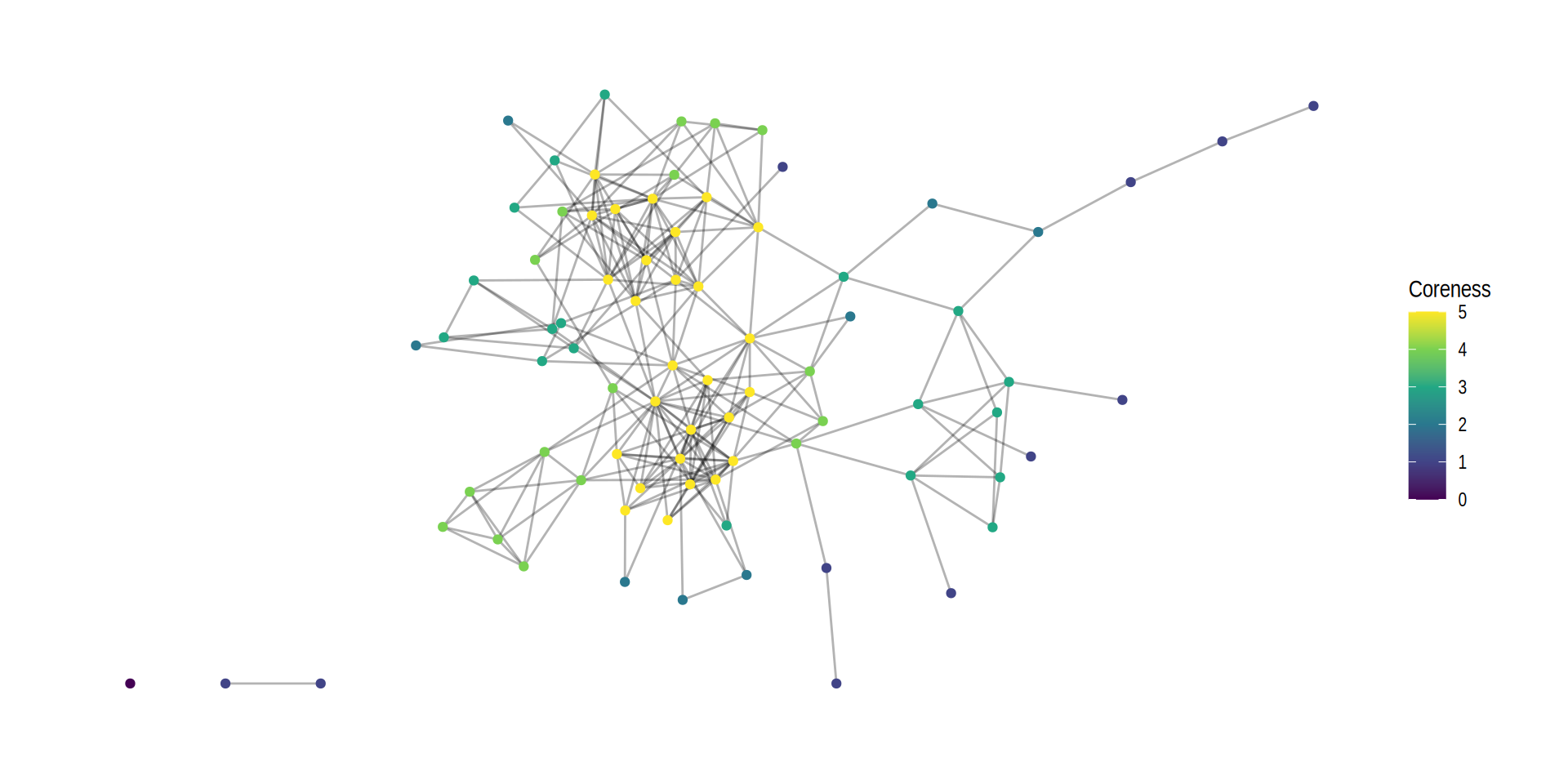

• K-cores
  • Every node gets a value: the largest k where they are in a subgraph where everyone else has degree of at least k
• Rich-club coefficient
  • How much are those with high degree connected to each other
